The most popular trekking Ecobike has undergone a complete revolution. X-Cross is an e-bike created from scratch, but maintaining the tradition that has been appreciated by users across Europe for years. A telescopic seatpost, wider tires, more sizes and a completely new handling system – the X-Cross once again sets the standard in its class!**
Ecobike X-Cross is very popular throughout Europe. Users value solid equipment and the ability to take the optimal position for comfortable driving in various conditions, even on long routes.

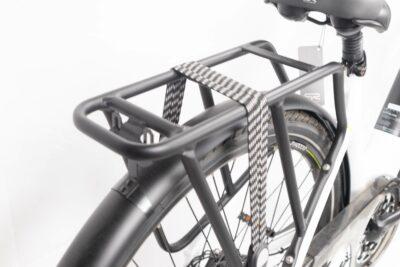

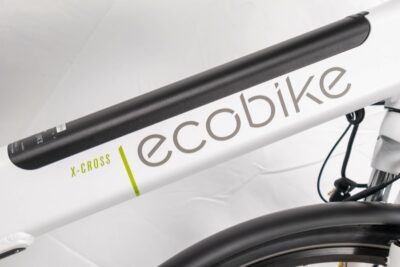

The new version of the model includes a number of changes. Starting with the frame, which has a more expressive and modern design and better protection of the batteries against water. The trunk with integrated lighting also adds a new character. Also noteworthy are the wider than before Schwalbe® Energizer Plus tires and the new telescopic seatpost.

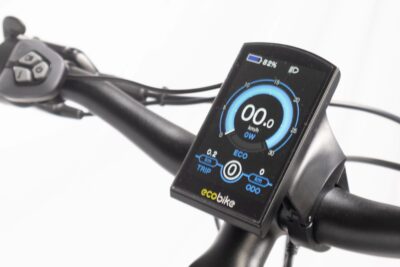

Finally, the most important thing – technological change. The X-Cross model has always been equipped with a reliable Bafanga® engine, but now the assistance system comes entirely from this manufacturer, making it even better optimized and therefore even more reliable and energy-efficient. The new Bafang® C270 display provides a range of information while driving, is easy to use and looks great.
Battery
-
- Charger: 220-240V/42V / 2A / D type
- Smart BMS: Yes
- Cells brand: Greenway / LG
- Capacity Wh: 522 – 630 Wh
- Type: Li-ion
- Voltage: 36 V
- Range: up to 140 km
- Fuses: 30 A
- Lifespan: 700 charges
- Charging time: 4 – 8 hours
- Capacity ah: 14.5 Ah – 17.5 Ah
E-bike system
-
- Motor: BAFANG

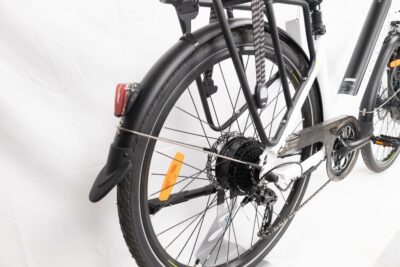

- Type: rear wheel
- Controller: BAFANG WZK0282
- Voltage: 36 V
- Torque: 45 N.m
- Maximum power: 560 W
- Power: 250 W
- Speed: 35 km / h limited to 25 km / h in accordance with EU standard EN 15194
- Bicycle
-
- Frame: 17″ / 19″ hydroformed alluminium

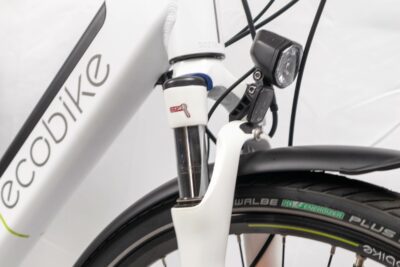

- Fork: SunTour SF15 NEX-E25 LO DS 700C (skok: 63 mm)

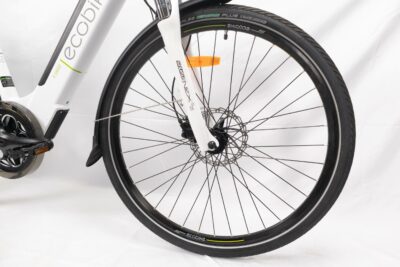

- Wheel: 28 inches / reinforced rims / stainless spokes
- Tires: 28 x 1.95 Schwalbe ENERGIZER PLUS
- Spoke: SAPIM 13G / Front wheel: 290 mm / Rear wheel: 249 mm
- Front hub: KT-K68F-QR M9*13G*36H*100W
- Handlebar: PROMAX HB-3188
- Handlebar stem: PROMAX MA-595
- Grip: VELO VLG-776
- Brakes: ALHONGA HYDRAULIC DISC BRAKE HJ-HT472
- Shifters: Shimano Alivio, 9 speed
- Grip: Shimano Altus (SL-M2000), 9 speed

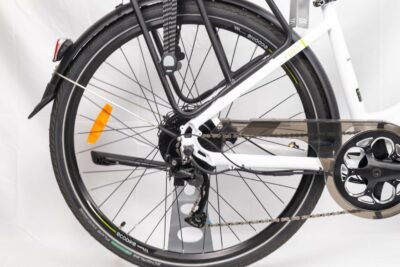

- Freewheel: Shimano Altus, 11-34T, 9 speed
- Bottom bracket: Feimin FP-B902W (73 mm x 124,5 mm)
- Chain: KMC, 118L, 9 speed

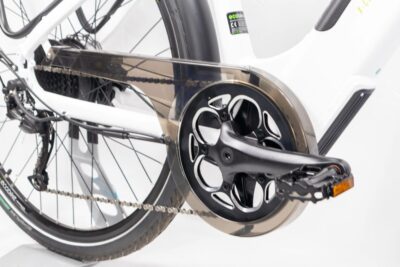

- Crank: TOPWHEEL OUNCE248AC (48T x 170 mm)
- Pedals: WELLGO
- Saddle: Selle Royal Lookin Basic
- Seat post: UNO SP382 (27,2 mm x 350 mm)

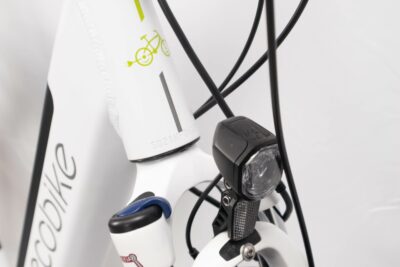

- Front lights: Spaninga KENDO XE
- Rear light: Spanninga GLOW XE 6-48V DC
- Maximum load: 125 kg
- Weight: 26.7 kg (17″) / 26.9 kg (19″)
- Steerer parameters: out. 28.6 mm / in. 25.4 mm / l. 247 mm
