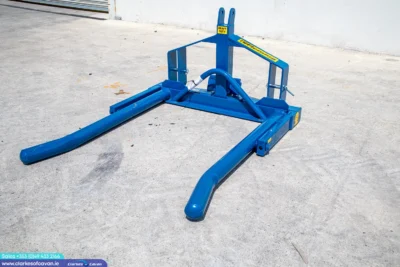

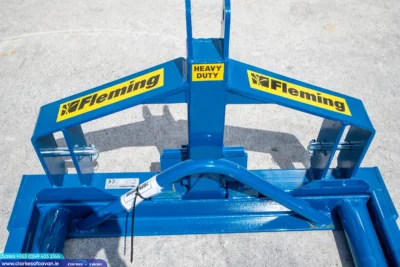

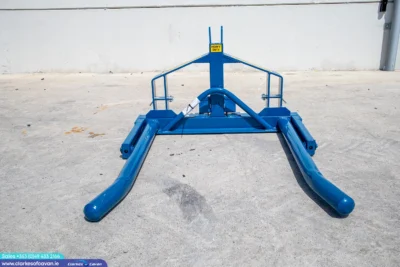

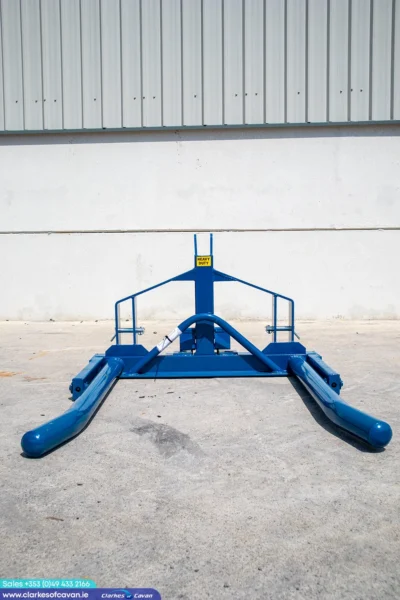

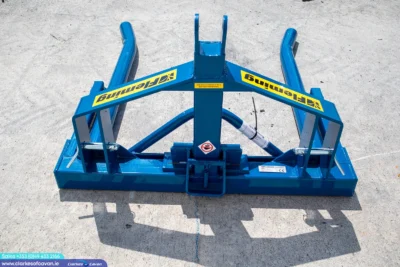

The Fleming Agri heavy duty bale tipper stores round bales on their end. The finely counter-balanced tipping mechanism automatically resets after tipping the bale. The bale tipper works well with silage, haylage, hay and straw round bales, both wrapped and unwrapped. As a result it is ideal for larger farms and contracting use. The heavy duty bale tipper has a 100mm structural box frame.
- Designed to transport and tip 4ft diameter bales on their end
- The finely counter-balanced tipping mechanism automatically resets itself after tipping the bale
- Fitted with bale protection bar
- Heavy duty bale tipper is manufactured from 100mm structural box
- All stress points are reinforced to give absolute rigidity for high HP tractors
- Large diameter 90mm carrier pipes with domed ends for better bale protection
- Pipes are splayed for easy bale collection
- Bushed and greased hinge points
- Supplied with Cat. 2 facility and lift pins
Specifications
Width – 1245mm
Length – 1590mm
Height – 770mm
Lift pins – Cat. 2
Opening – 900mm
Frame Thickness – 100mm
Weight – 124kg
