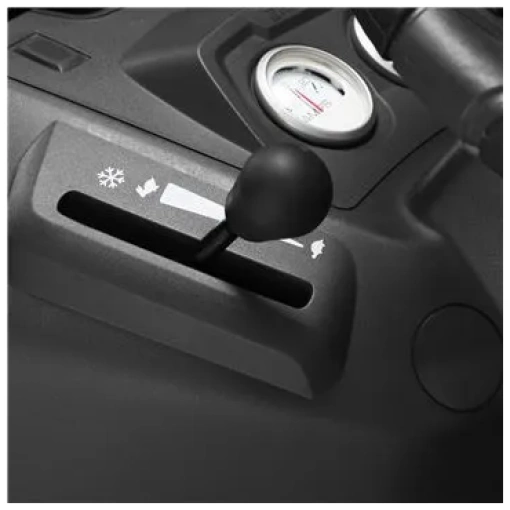

The TC 239T is a rear collection tractor offering durability, comfort and manoeuvrability for occasional use in mid-sized to large gardens. Powerful Twin cylinder Husqvarna Endurance Series engine with chokeless start ensures easy starting and operation, while electric blade engagement, reinforced cutting deck and robust collection system with steel backplate and latching mechanism ensure simple operation and great cutting results. BioClip™ operation from the seat allows the driver to switch from collection to mulching quickly and easily. The solid cast-iron front axle allows tight turns in difficult areas. Cylinder displacement – 656 cm³ Net power at preset rpm Energy – 10.1 kW Cutting width – 108 cm Transmission type – Hydrostatic
Features

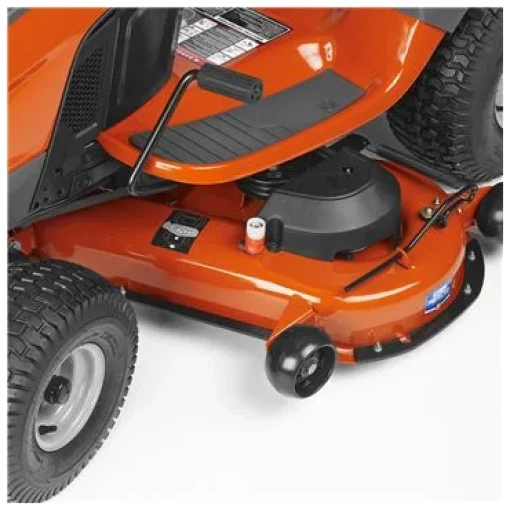

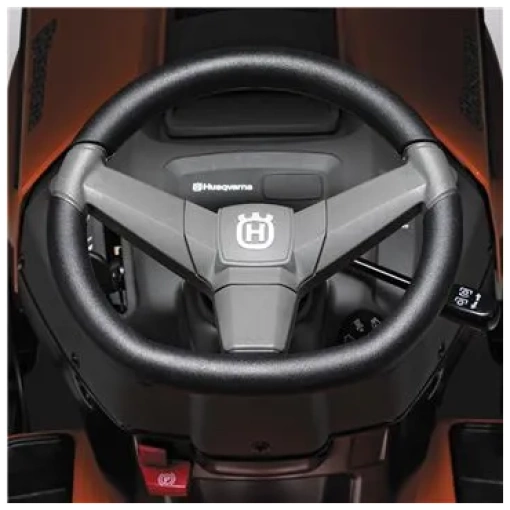

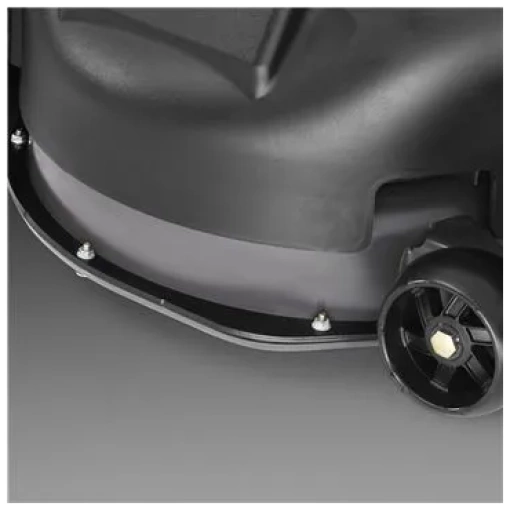

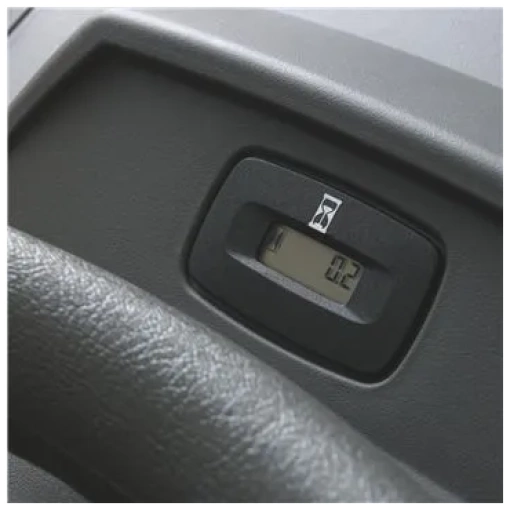

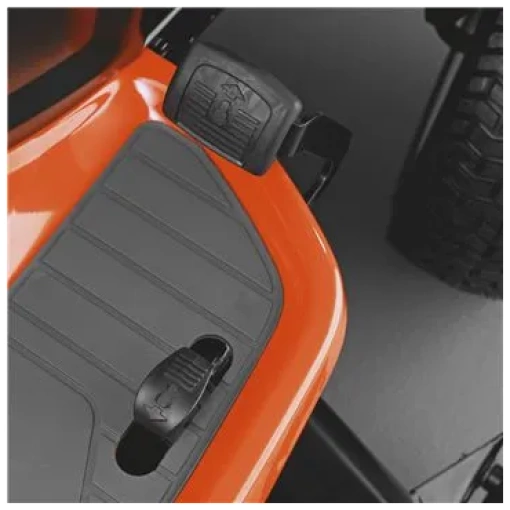

Pedal-operated hydrostatic transmission Easy speed and direction control with pedal-operated hydrostatic transmission. Separate pedals for forward and reverse. Reinforced Cutting Deck The stamped cutting deck is reinforced with heavy flat-stock steel for added strength and durability on the leading edge and trim side. (48″ shown) Sliding, angled seat Adjustable while seated; seat moves forward and down, or backwards and up. Air Induction Innovative Air Induction mowing system that draws clean air from the top and bottom of the deck, enhancing air flow which results in greater grass lift and superior cut. Oversized steering wheel Extra-large and thick steering wheel for less steering effort and smoother operation. Cast front axle Heavy cast front axle provides superior balance and stability, even with a collector. Hour meter with service minder Indicates when it’s time to service your tractor. Steel hood Hood in solid steel construction guarantees reduced paint fade compared to plastic. Rugged frame Full length, welded rugged frame for maximum durability and sturdiness. Tipped paint for rust resistance. Anti-scalp wheels The cutting deck is equipped with anti-scalp wheels, which reduce the risk of scalping when cutting uneven lawns. Chokeless start Easy to get operating with automatic choke. Just turn the key and go.
Specification
Cutting deck
Cutting width 108 cm Nose roller No Anti-scalp wheels 2
Drive system
Drive method Pedal-operated Speed reverse max 3.5 km/h
Engine
Motor/engine manufacturer Briggs & Stratton Engine name Intek Cylinders 2 Generator 5&3 A Power/fuel type Gasoline Oil filter Yes Net power at preset rpm Energy 10.1 kW Net power at preset rpm 2600 rpm Exhaust emissions (CO2 EU V) 830.04 g/kWh[1,
Equipment
Seat material Vinyl Front-End Protection Available as accessory Hour meter type Digital with pre-programmed service intervals Seat back height High 15″ Steering wheel type Standard Collector Included
Sound and Noise
Sound power level, guaranteed (LWA) 100.0 dB(A) Sound power level, measured 98 dB(A) Sound pressure level at operators ear 84 dB(A)
Transmission
Transmission type Hydrostatic Transmission manufacturer Tuff Torq
