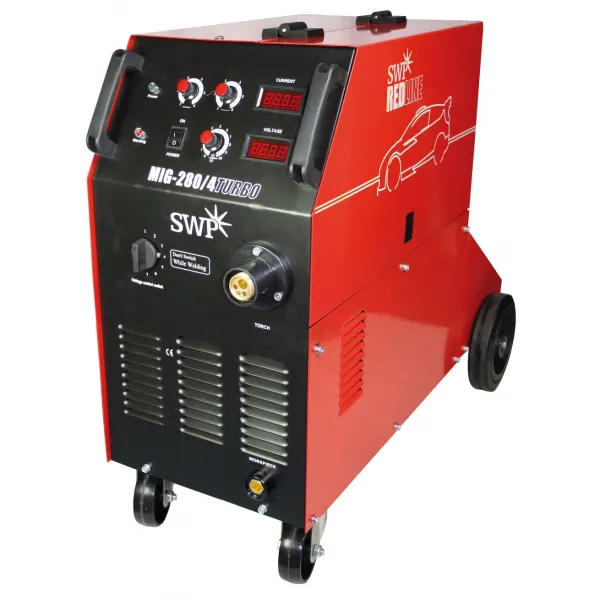

This machine is perfect for work on car bodies, gates, railings and general light to medium fabrication
It's a powerful, single phase, compact machine supplied with a 4-roll drive feed system.
- Robust motor and gearbox
- Digital amp and voltmetet
- Low spatter transformer design
- Spot and stitch timer
- Slope down for crater fill
- Fan cooled for efficiency
- Will support full size gas cylinder
- Copper transformer
- Torch and regulator included
No Load Voltage | 40V Max |
Protection | IP21 |
Output current | 200A |
Fuse | 32A |
Welding Voltage Range | 16-24V |
Welding Wire Diameter | 0.6-1.2mm |
Welding Wire DIA | 200-300mm |
Mains Connection | 1-230v 50/60HZ |
Welding Current | 40-280A |
KVA | 7.6 |
Duty Cycle @ 40% | 200A |
Duty Cycle @ 100% | 130A |
Weight | 60kg |
Insulation Class | F |
Dimensions (MM) | 765x345x730 |
